Predictive Maintenance for Corrugated & Packaging Plants

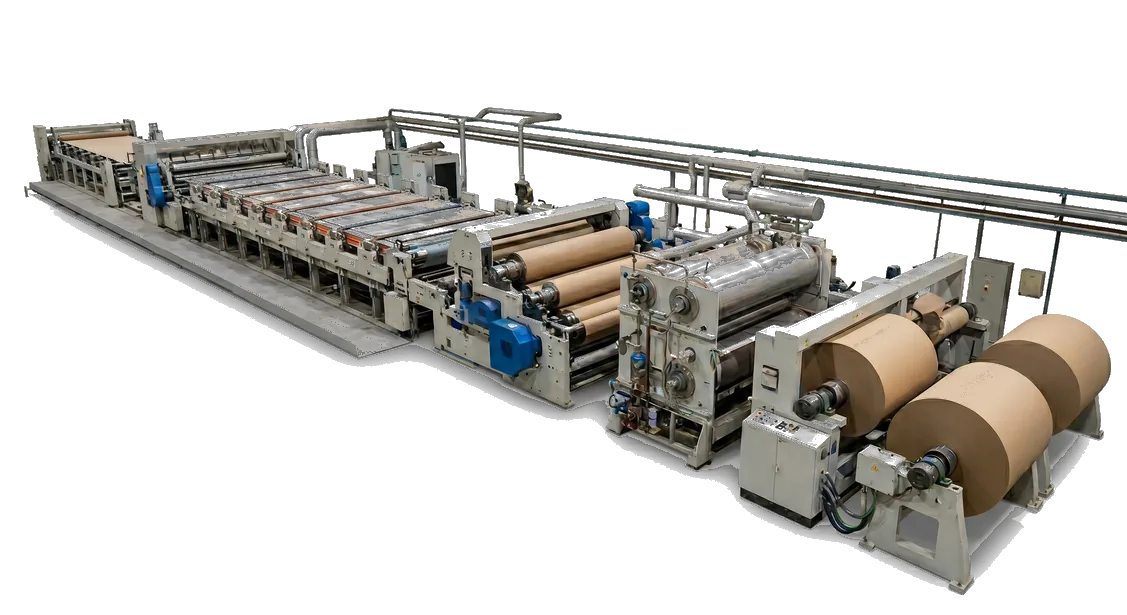

Predictive maintenance for corrugated and packaging plants is the continuous monitoring of the assets that keep the corrugator and converting lines running — trim blowers, drives, gearboxes, vacuum and dust-collection fans, and the steam traps that heat the corrugator — using ultrasound, vibration, temperature and electrical data. A developing fault is caught at its earliest stage and corrected on a planned schedule instead of stopping the line.

Most unplanned downtime in a corrugated box plant starts with a rotating asset or the steam system: lubrication breakdown and bearing failure on trim blowers, gearbox wear on corrugator drives, motor electrical faults, and failed steam traps on the single facer and double backer. Because there is little buffer between the corrugator and the converting floor, one failure can stop the whole plant.

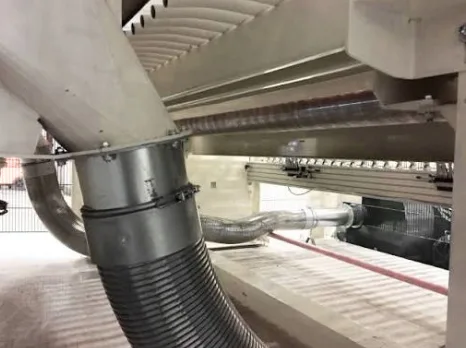

Trim blowers run continuously in paper dust and radiant heat, which break grease down faster than a calendar schedule assumes. The most common failure path is lubrication breakdown, followed by bearing race defects and seizure. Imbalance from material buildup accelerates wear. Ultrasound detects the rising friction signature at the earliest stage, before vibration changes.

At one packaging plant, documented downtime cost was $16,000 an hour — and an early catch on a trim fan bearing prevented a 10-hour outage, protecting $184,000–$189,000 in production continuity. Corrugator downtime cost varies by plant and is usually measured per hour of lost production, so the trim system and the corrugator drives carry the highest exposure. Read the trim fan case study.

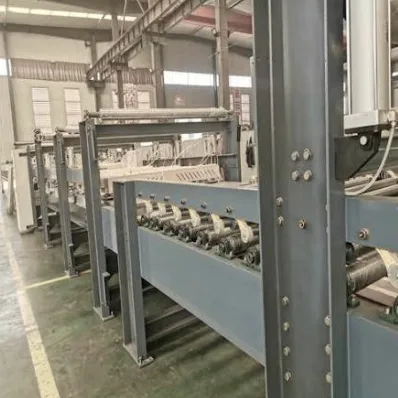

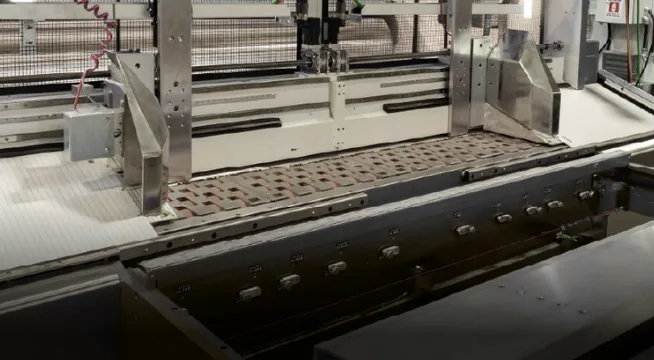

Start with the assets whose failure stops the corrugator: trim blowers and trim removal systems, corrugator drives and gearboxes, and the steam traps that heat the single facer and double backer. Then extend coverage to converting-line drives, vacuum and dust-collection fans, and the supporting equipment on VELO™ Series temperature and vibration monitoring.

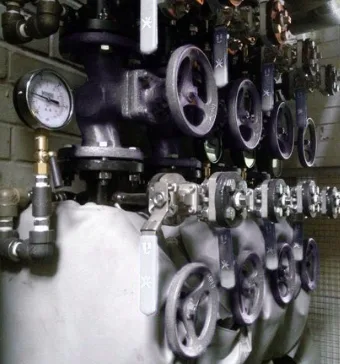

The corrugator runs on steam: preheaters, single facer rolls and double backer hot plates all depend on traps draining condensate. A failed-closed trap floods a roll or plate and leaves a cold spot that causes warp and weak bonding; a failed-open trap blows live steam away — $8,000–$12,000 a year per trap. In an unmonitored system roughly 30% of traps have typically failed. SteamMatrix™ contact ultrasound flags each failure the day it develops.

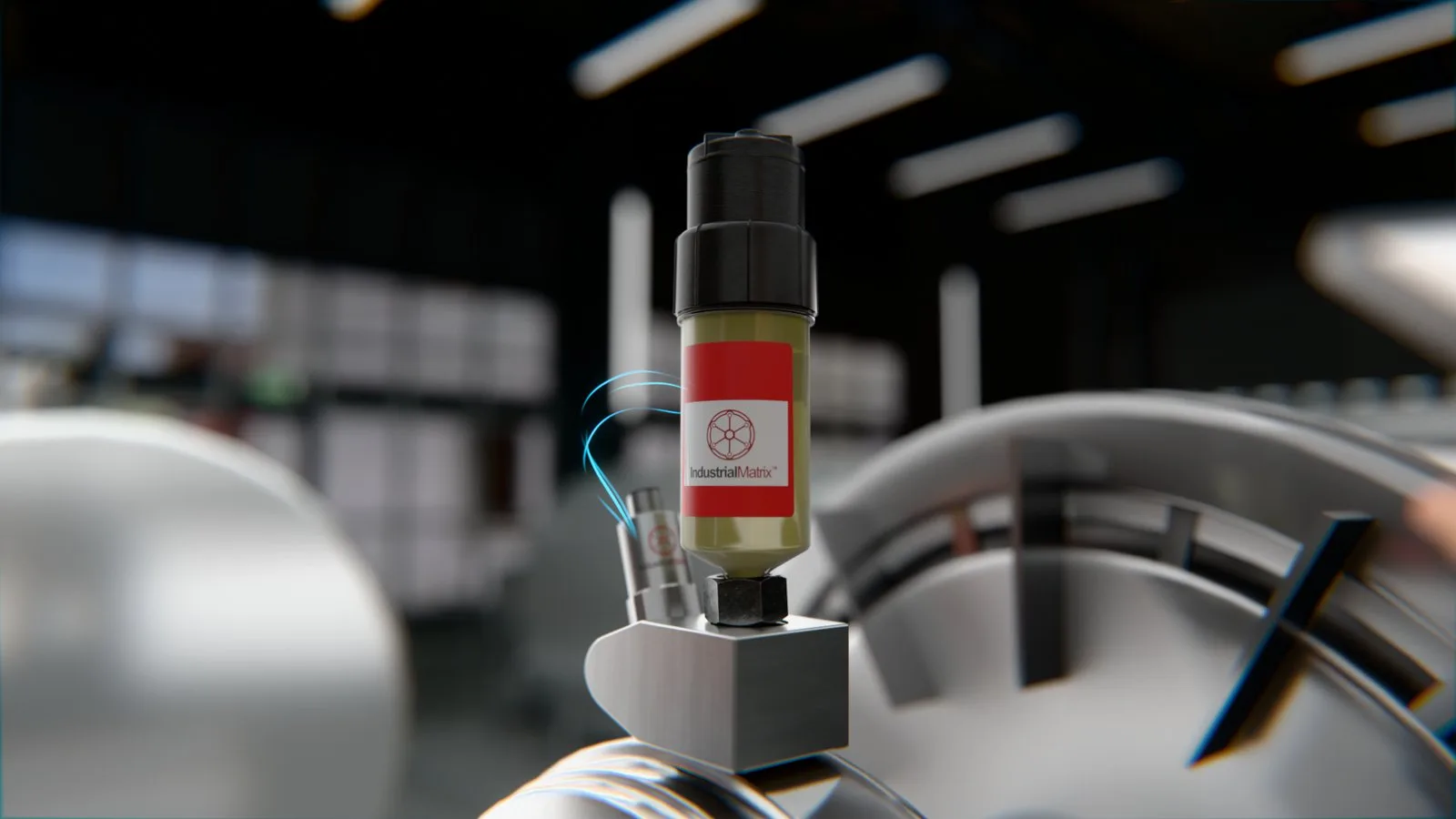

Ultrasonic greasing, also called ultrasound greasing or online condition-based lubrication (online CBL), adds grease based on a bearing's measured ultrasonic friction signature instead of a calendar. AI LubeMatrix™ monitors each bearing with online ultrasound, doses when friction rises, and verifies that friction returns to baseline — including the guarded, elevated and ducted blower bearings that manual routes reach least.

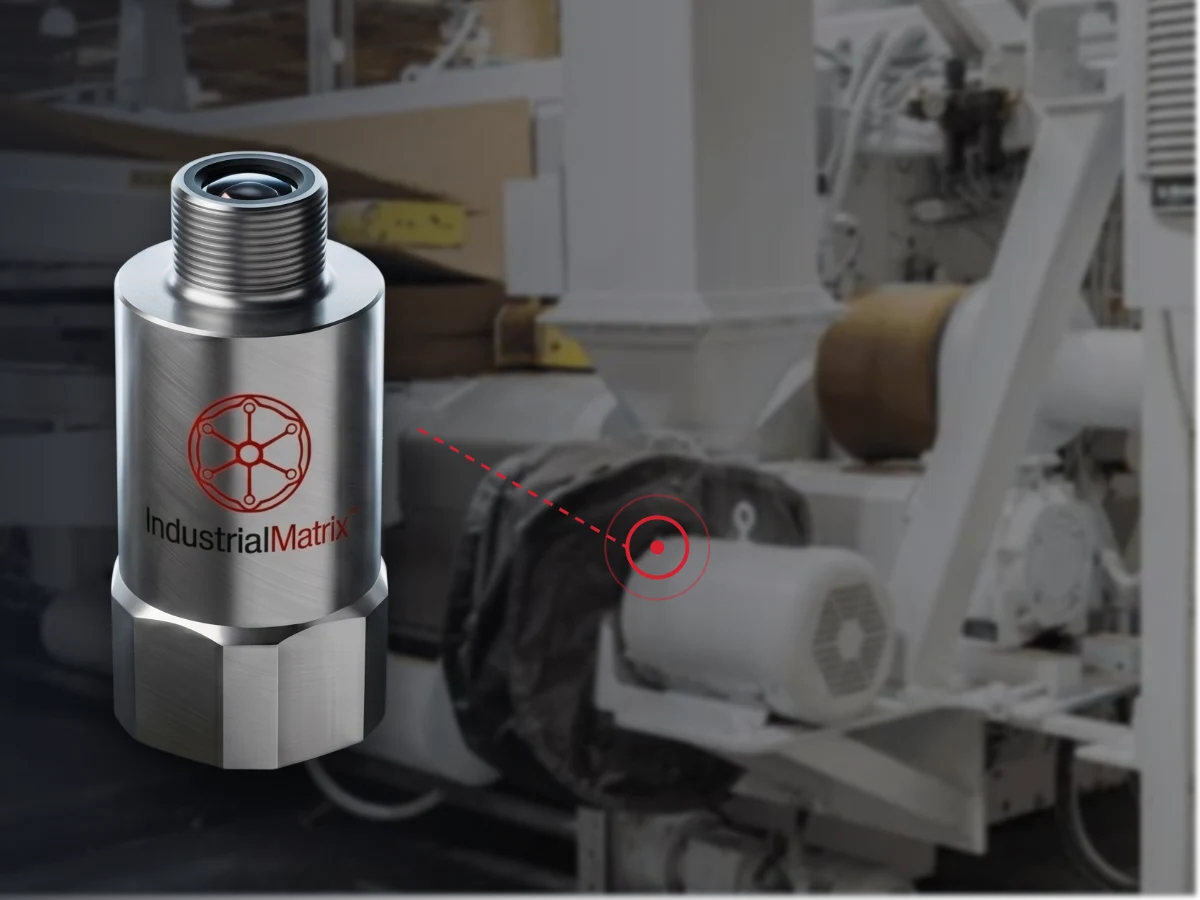

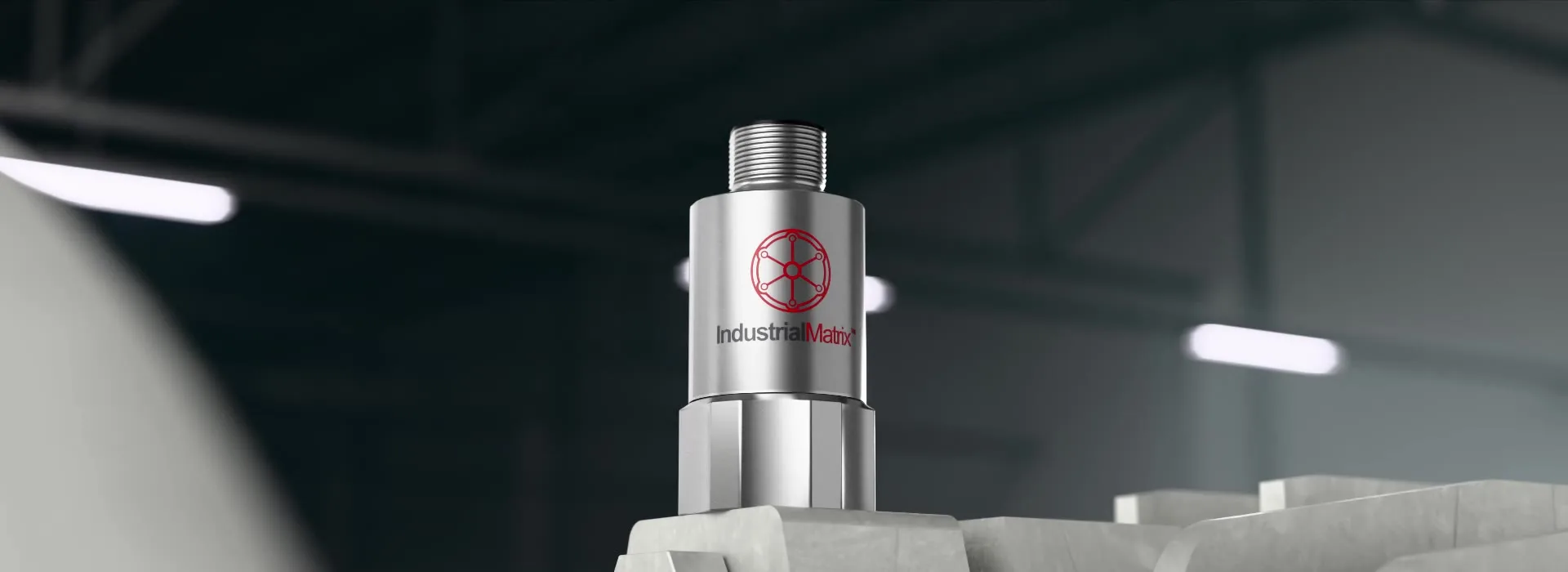

Yes, as long as the sensors are sealed for paper dust and heat. UltraVibe™ is wired, sealed to IP69K/IP67 and operates from −40 °C to +105 °C; the VELO™ Series covers −40 °C to +150 °C, with VeloSense™ wireless on a 5+ year battery for hard-to-cable fans and drives. Sensors mount externally on bearing housings, away from the hot plates and the paper path, and run continuously through every shift without routine handling.

Predictive maintenance identifies that a fault is developing. Prescriptive maintenance defines what to do about it and when. Industrial Matrix delivers validated findings with the corrective action already defined, corrects lubrication faults autonomously with AI LubeMatrix™, and tracks every other work order until the fault is closed.

No. Most corrugated plants run without an in-house vibration analyst. MatrixHub™ sets each asset's alarm thresholds autonomously within 24–48 hours, the Industrial Matrix Customer Success team validates every flagged anomaly, and findings are reviewed with your maintenance team in a biweekly Customer Success meeting.

Yes. MatrixHub™ centralizes asset health data from every site in one platform and integrates with your CMMS through Modbus, MQTT, OPC-UA and REST, so the same monitoring standard, alarm logic and work-order process applies across every corrugated and packaging plant.

Look for sensing across the full P-F curve (ultrasound, HFE, vibration and temperature), sensors rated for heat, dust and continuous duty, steam trap and electrical monitoring, human validation of every finding, CMMS integration, and a defined path from alert to corrective action. Several vendors now combine vibration and ultrasound sensing. Industrial Matrix is the only company that combines a full condition monitoring sensor ecosystem with an autonomous condition-based lubrication actuator in one closed loop.

Deployment starts with a site survey that sets coverage for each asset. Once sensors are installed, MatrixHub™ learns each asset's normal operating signature and sets alarm thresholds autonomously within 24–48 hours. Wireless VeloSense™ sensors with a 5+ year battery reduce installation work on supporting equipment.
