Compressor Misalignment Caught in Cold Storage

Results at a glance

Asset	Compressor–motor assembly (frozen food plant)
Fault detected	Developing coupling misalignment
Detection technology	Vibration and temperature sensors, streaming into MatrixHub™
Warning before failure	Vibration rose gradually over two weeks before a rapid spike triggered the alert
Outcome	$25,000–$35,000 in cost avoidance — up to 26 tones of frozen product protected, repair made during a brief production pause

A major frozen food processing plant used Industrial Matrix condition monitoring within the closed-loop reliability ecosystem to identify a developing coupling misalignment on a critical compressor–motor assembly.

Early detection allowed maintenance to correct the issue during a brief production pause - preventing the potential loss of up to 26 tonnes of frozen product and capturing $25,000–$35,000 in cost avoidance.

The Challenge

The compressor supplied nearly 50% of the facility’s freezing capacity, operating under:

Continuous, low-temperature conditions
Heavy vibration stress
Strict throughput and product-quality requirements
Limited opportunities for downtime

The risks included:

Production loss valued at tens of thousands per hour
Temperature excursions impacting frozen product integrity
Misalignment or wear going unnoticed without continuous monitoring

A failure could halt production and jeopardize customer commitments.

The Solution

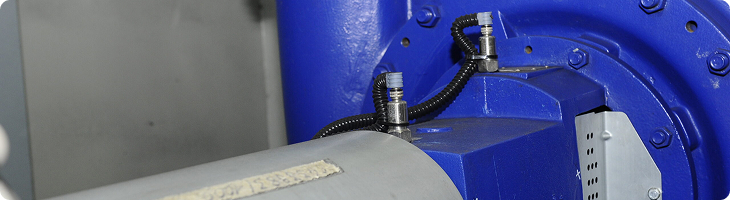

Vibration and temperature sensors were installed on the compressor's motor and driven ends and connected into the Industrial Matrix closed-loop reliability ecosystem.

Continuous velocity and acceleration trending
Detection of a clear upward shift in axial vibration
Early confirmation of a developing coupling misalignment
Expert validation by Industrial Matrix reliability specialists
A corrective repair aligned with a brief production window

The plant converted a high-risk mechanical issue into a controlled, low-impact maintenance action.

Findings & Action Plan

Phase	Insight	Action	Result
Detection	Gradual rise in vibration amplitude over two weeks, followed by a rapid spike.	AI alert verified by Industrial Matrix experts.	Early warning before operational threshold breach.
Diagnosis	Axial vibration signature consistent with coupling misalignment.	Recommendation to realign coupling.	Fault source precisely identified.
Intervention	Coupling realigned and tightened during a short production pause.	Maintenance completed without affecting throughput	Immediate vibration reduction to a stable baseline.
Verification	Post-action data confirmed all vibration metrics normalized.	Continuous monitoring resumed.	Failure mode eliminated; full capacity preserved.

Total ROI

Metric	Before Monitoring	After Intervention	Impact
Frozen Product at Risk	Up to 26 tonnes	0 tonnes lost	100% preservation of frozen capacity
Cost Avoidance	N/A	$25,000–$35,000 per incident	Verified savings
Downtime Risk	High Potential 12-hour shutdown	Eliminated	Zero production loss
Predictive Accuracy	No predictive layer	Verified by physical inspection	100% alignment

Strategic Insights

Predictive maintenance protected both equipment performance and cold-chain inventory.

Proactive planning allowed a controlled, low-impact intervention aligned with scheduled downtime.

Human-validated insights ensured maintenance acted on precise, actionable data.

Early intervention prevented product loss, waste, and unnecessary energy consumption, supporting sustainability goals.

Long-Term Impact

Following this success, the facility expanded Industrial Matrix
condition monitoring across:

Additional compressors

Freezers and refrigeration assets

Mixers, conveyors, and packaging lines

Predictive maintenance is now a key component of the plant’s digital
transformation strategy, strengthening uptime, planning accuracy,
and operational resilience.

Conclusion

Industrial Matrix condition monitoring enabled the plant to detect and correct a developing coupling misalignment before it escalated into a costly operational and product-quality issue. The result: secure capacity, zero product loss, and a measurable reliability win.
